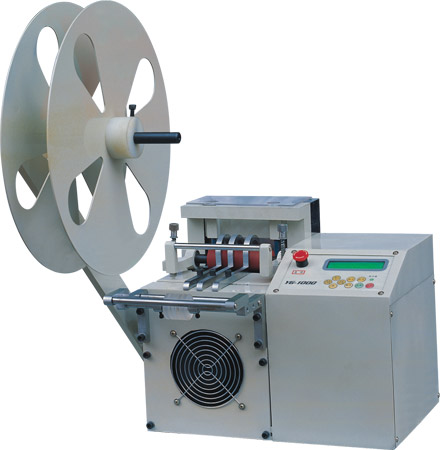

YG-1000多用途電腦切管機
{$產品視頻$}
特點說明
- 本機采用微電腦程序、步進馬達控制，準確度高；
- 面板中文按鍵，易看、易操作；
- 連動、手動操作時，可前進送料或后退；并可直接用手動切刀，送線、切刀均
可手動操作；
- 切料寬度可達到120mm，適用熱縮套管、排線、隔離線、編織線等等。
Explanation of features
- The machine adopts micro-computer procedures and stepping motor control
to ensure high precision.
- The panel buttons in Chinese can make reading and operation convenient.
- During interlock and manual operations, the operator can manage forward or
reverse feeding, and can carry out manual cutting and cutting.
- The maximum cutting width is 120mm. It is applicable to heat shrinkage bush,
flat cable, separating wire, and braided wire, etc.
技術參數Technical parameters
| 型號 |
Model |
YG-1000 |
| 電源 |
Power |
AC100V--240V 50/60HZ |
| 馬力 |
Air pressure |
1/3HP |
| 切斷長度 |
Stripping length |
0--99999 mm |
| 切斷寬度 |
Cylinder size |
Max.120mm |
| 外觀尺寸 |
External dimensions |
500mm×450mm×450mm |
| 重量 |
Weight |
39kg |
|
